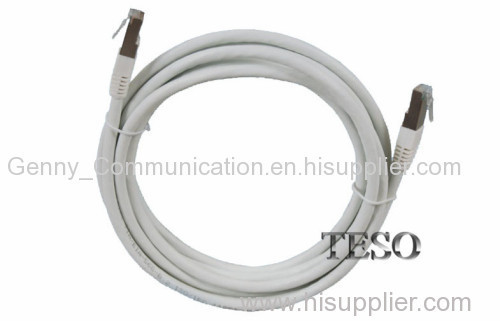

Shielded FTP 10G Ethernet Patch Cord Cat6a , High Performance

Quick Detail:

1. 4 pairs 26awg Cat6a FTP Patch Cable /Patch Cord, shielded ,stranded cord

2. Conductor: Bare copper , soft annealed bare copper.

3.Insulation: America Dow's HDPE

4.Contact: FU/1U/3U/6U/15U/30U/50U gold plated

5.Outer jacket: PVC or FRPVC

6.Any color and any length is optional .

7. Test :Pass fluke test and with 25 years quality warranty.

Description

*Patch Cord FTP, Category 6a, 10G

*PC-RJ45-RJ45

Application

*10 Base-T Ethernet

*100Base-TX Fast Ethernet

*1000Base-TX Gigabit Ethernet

*1000Base-T Gigabit Ethernet

*ATM CB1G

*155/622 Mbps ATM

*100 Mbps TP-PMD

*100VG-AnyLAN

*4/16 Mbps Token Ring

*Voice

Industry Standard

*UL Verified

*Meet cat6A channel performance

 Requirements in TIA/EIA-568-B.2-10

Specifications

Fire resistant :CM ,LSZH ,CMR

Materials

Cable

*Conductor: 7 copper wires, 26 AWG

*Insulation: High Density Polyethylene (HDPE)

*Number of pairs: 4

*Color of twisted pairs: blue-white/blue, orange-white/orange, green-white/green, brown-white/brown

*Shield:  nickel plated brass alloy

*Drain wire: 7 wires

*Jacket: fire retardant PVC Ø 6.35 ± 0.2 mm (0.25" ± 0.008")

Plugs

*2 pieces RJ-45 8P8C

*Contact: phosphor bronze with 1.27 micron (50 microinches) hard gold plating or can choose FU/1U/3/6U/15U/30U

*Housing: flame retardant PC (polycarbonate) UL 94V-0

*Latch guard Material: PVC

Technical characteristics

*Storage temperature: -40°C - +70°C (-40 °F - +158 °F)

*Operation temperature: -10°C - +60°C (+14 °F - 140 °F)

*Relative humidity: 93% noncondensing

*Retention: 50 N for 60±5 s

*Insertion/extraction life: 750 min.

*Tensile strength: ≥ 20 N per wire

*Insulation resistance at 100 VDC: 500 MOhm min.

*Dielectric withstand voltage (contact to contact): 1000 VDC or VAC

*Dielectric withstand voltage (contact to test panel): 1500 VDC or VAC

*Contact resistance: 20 mOhm

*Current rating: see the diagramm
